Biogas Plant Manufacturers

Biogas Plant Manufacturer In Pune

Biogas Plant produced Biogas by the crash of organic product matter in the absence of oxygen. Also from raw materials such as manure, municipal waste, plant material, agricultural waste, sewage, green waste or food waste Biogas is produced.Portable Biogas Plant is a renewable energy source.

Biogas is produced with the help of anaerobic digestion with anaerobic organisms or methanogen, which digest material inside a closed system, or fermentation of biodegradable materials. This closed system is called an anaerobic digester, bioreactor or a biodigester.

Biogas is primarily produced from methane (CH4) and carbon dioxide (CO2) and may have small amounts of hydrogen sulfide (H2S), moisture and siloxanes. The gases methane, hydrogen, and carbon monoxide (CO) can be combusted or oxidized with oxygen. This energy release allows biogas to be used as a fuel; it can be used for any type of heating purpose, such as home cooking. It can also effectively used in a gas engine to convert the energy in the gas into electricity and heat.

The same way as natural gas is compressed to CNG, Biogas can be compressed and used to power motor vehicles. In the United Kingdom, for example, biogas is estimated to have the potential to replace around 17% or more of vehicle fuel. It qualifies for renewable energy subsidies in some parts of the world. Biogas can be cleaned and upgraded to natural gas standards when it becomes bio-methane. Biogas is considered to be a renewable resource because its production-and-use cycle continuously works, and it generates no net carbon dioxide. As the organic material grows, it is converted and used further. It then regrows in a continually repeating cycle. From a carbon perspective, as much carbon dioxide is absorbed from the layers of the atmosphere in the growth of the primary bio-resource as is released, when the material is ultimately converted to energy.

Gas Generation from Food Waste

Capacity Biogas/day LPG/month (19kg) Electricity/day KWh
500 kg 40 cum 29 60
1000 kg 80 cum 57 120
2000 kg 160 cum 114 240

Gas generation from Cow dung

Capacity Biogas/day LPG/month (19kg) Electricity/day KWh
500 kg 25 cum 18 38
1000 kg 50 cum 36 75
2000 kg 100 cum 72 150

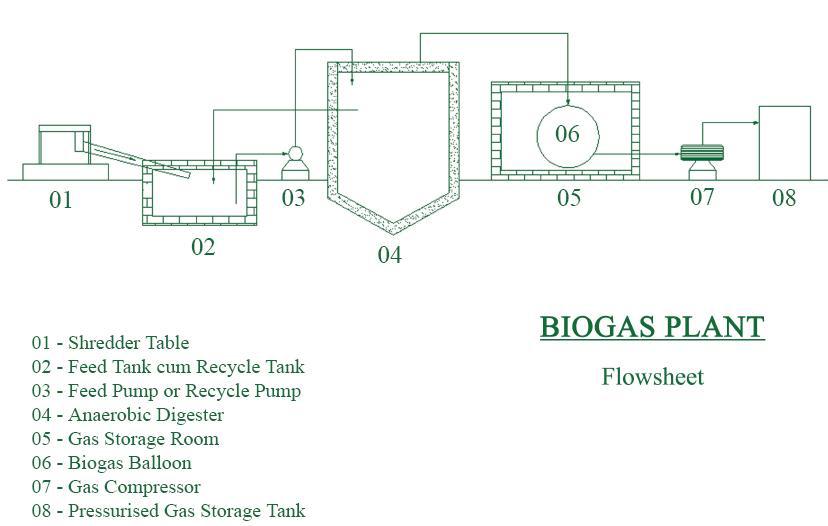

Typical Biogas plant flow Diagram

Biogas plant flow Diagram

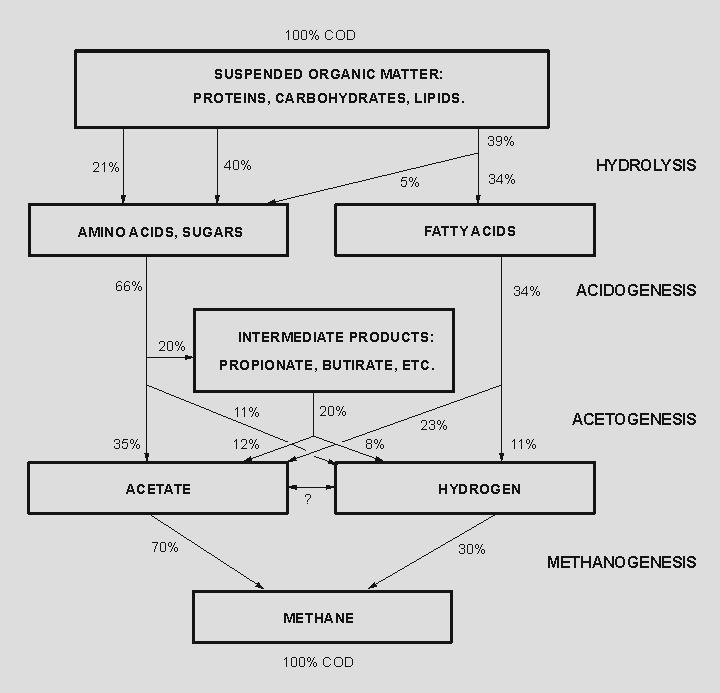

TYPICAL ANAEROBIC DIGESTION CYCLE

TYPICAL ANAEROBIC DIGESTION CYCLE

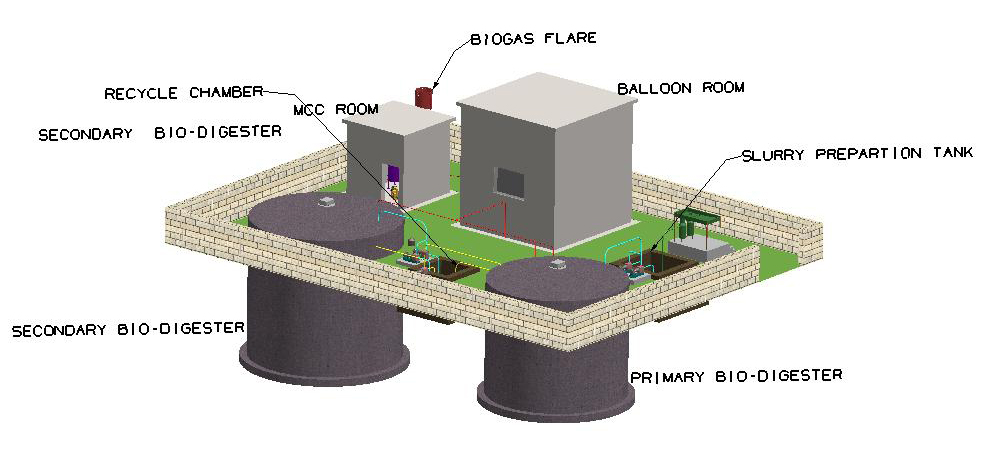

Typical Biogas layout

Biogas Plant layout
